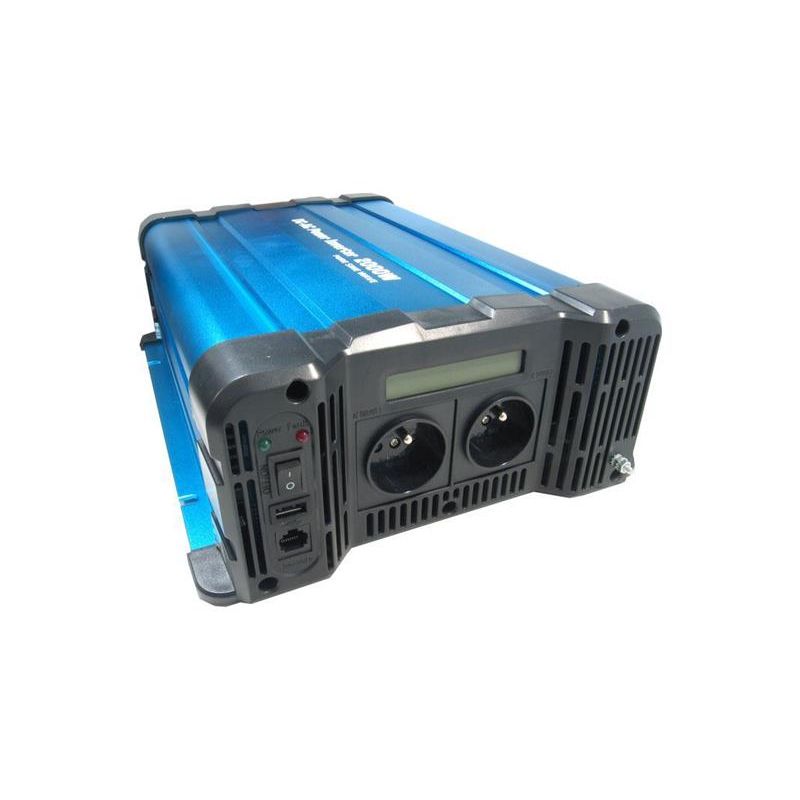

Voltage converter FS2000 48V/230V 2000W pure sine wave D.O. wireless
TI4230597
Top inverter with a clean sine wave suitable for appliances with high demands on a clean sine waveform of the supply voltage. When using this inverter, there is no risk of damage to appliances with sensitive electronics, such as TV receivers, monitors, some coffee machines, chargers, etc. At the same time, due to its performance, it is suitable for emergency use of any appliance with high consumption, such as welding machines, hand tools, etc. however, for high consumptions, it is necessary to use a battery with a capacity of min. 200Ah and sufficiently dimensioned supply wires (for a distance of up to 5m min 35mm2). The converter is equipped with a removable remote control with wireless transmission at a distance of up to 5 m. The inverter can also be operated without a remote control.
Technical parameters:
- nominal input voltage: 48 V DC
- permitted input voltage range: 42 V - 60 V DC
- nominal output voltage: 230 V AC + USB 5 V DC / 2.1 A
- permitted load: 2000 W permanently, 4000 W 3 sec., 2500 W 3 min.
- current consumption: 1A at no load, 45 A at full load
- efficiency: 89~93%
- undervoltage protection: when Uvst<42V – alarm, <40V – shutdown
- protection against overvoltage: when Uvst>62V - shutdown
- thermal protection - against overheating. Automatic reset after cooling down.
- protection against overload and short circuit at the output
- soft start: 3–5 sec
- LCD display with display of battery voltage [DCV] [ and instantaneous consumption [W] – the data is displayed gradually in a period of approx. 1s
- safety and EMC: EN62040–2,EN61000–3, IEC61000–4–3,IEC61000–4–6
- insulation resistance: 100Mohm/500V, I/P-O/P
- dimensions: 350×230×105mm / 5.8kg
- the remote control disconnects the inverter from operation. The consumption of the converter after turning off the DO is approx. 12mA.
- the remote control is powered by 2 CR2016 batteries (not included in the package)
E.A.N
8596425175581
