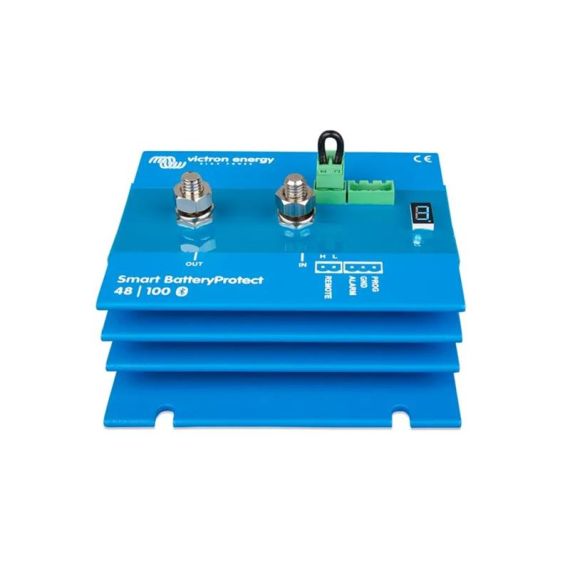

Battery protection Smart BP-100 48V
TI4280328
Appliance disconnector as protection against deep battery discharge. Maximum load current 100 A. Integrated Bluetooth for easy setup. Battery protection Smart BatteryProtect protects the battery from over-discharge (which could damage the battery) and can be used as a system on/off switch.
Integrated Bluetooth = very easy programming:
- thanks to the integrated Bluetooth function for Smart BatteryProtect programming, the required voltage levels can be easily set for connecting / disconnecting the load. You can make settings via smartphone, tablet or PC using the VictronConnect app. Alternatively, one of the nine pre-set connect/disconnect levels can be set using the programming pin (see manual). Bluetooth can be turned off if needed.
VictronConnect application:
- download the application for free under the name VictronConnect app in the App Store or Google Play.
Special settings for Li-ion batteries:
- in this mode, the Smart BatteryProtect can be controlled via the VE.Bus BMS.
- note: Smart BatteryProtect can also be used as a charging disconnect between the battery charger and the Li-ion battery. See the wiring diagram in the manual.
Very low power consumption:
- low consumption is very important for Li-ion batteries, especially after switching off at low voltage. For more information, please see the Li-ion battery datasheet and the VE.Bus BMS manual.
Overvoltage protection:
- in the event of an overvoltage resulting in possible damage to sensitive devices, the devices are disconnected if the DC voltage exceeds 64 V.
Spark resistant:
- it does not work with relay elements but with MOSFET transistor switches, no sparking occurs.
Delayed alarm output:
- the alarm output is activated if the battery voltage drops below the set value for more than 12 seconds. Starting the engine therefore does not activate the alarm. The alarm output is an open collector output on the negative bus, max. current 500 mA. The alarm output is typically connected to a buzzer or light signaling.
Delayed load disconnection:
- the load is disconnected 90 seconds after the alarm was triggered. If during this time the battery voltage rises to the "connection threshold" level (e.g. during engine start), the load will not be disconnected. The load will reconnect 30 seconds after the battery voltage rises above the preset reconnect voltage.
BatteryProtect battery protection is unidirectional, i.e. current can only flow from input "in" to output "out". Reverse current passing from the "out" output to the "in" input is unacceptable and will damage the device.
Technical parameters:
- manufacturer: Victron Energy
- current: 100 A
- voltage: 48 V
- Bluetooth: yes
Brand
VICTRON ENERGY
E.A.N
8719076041252
