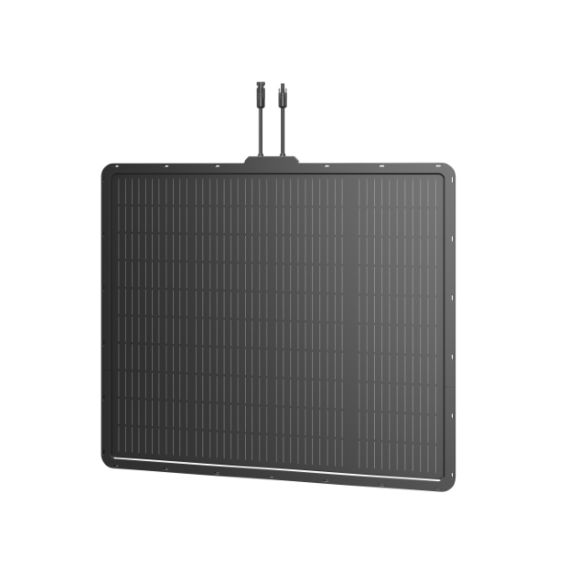

Solar panel SOLARFAM 12V/100W semi flexible for balcony, fence
TI4280348
Lightweight solar modules with better efficiency in power generation and longer life span than traditional flexible modules. The CPC material used on the surface has good weather resistance and high light transmission, and its performance is better than that of the ETFE material. Integrating composite material has better protection of solar cells compared to traditional flexible panels. The panels are very light, easy to carry and install. They are suitable for a variety of applications, especially for mobile off-grid systems and balconies.
Technical parameters:
- rated output: 100 W
- maximum current (Impp): 4,32 A
- maximum supply voltage (Vmp): 23,2 V
- idle voltage (Voc): 27,2 V
- short circuit current (ISC): 4,57 A
- maximum system voltage: 100 V
- output tolerance: +3 per cent
- cable: 900 mm / 2,5 mm2
- connector type: MC4 / MC4 compatible
- module design: CPC / EVA / back layer
- degree of cover: ≥IP67
- working temperature: -20°C+ 65°C
- dimensions: 710 x 800 x 16 mm
- weight: 2,3 kg
Brand
SOLARFAM
