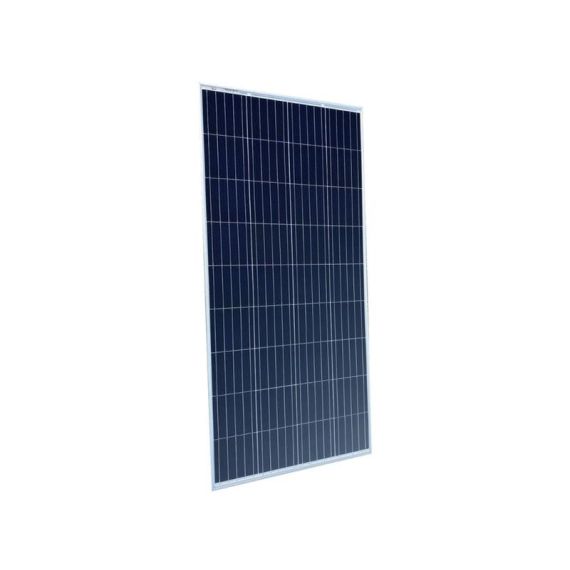

Solar panel Victron Energy 12V/175W polykristalline
TI4280065
Victron Energy 175Wp / 12V solar panel
BlueSolar 175Wp-12V series 4a polycrystalline solar panel with a peak output of 175Wp, for systems with a working voltage of 12V.
Main characteristics:
- a low voltage-temperature factor increases the efficiency of operation at high temperatures
- exceptional performance in low light and high sensitivity to light in the entire solar spectrum
- 25-year limited warranty on output power and operating parameters (10 years 90% + 25 years 80% output power)
- closed waterproof multifunctional junction box provides a high level of safety
- powerful by-pass diodes limit the power drop during shading
- robust frame made of anodized aluminum facilitates roof mounting of panels in various mounting systems
- Highly transparent tempered glass of the highest quality shows increased rigidity and impact resistance
- pre-wired quick connection system with MC4 type connectors
- advanced encapsulation system made of EVA (ethylene vinyl acetate) with a three-layer protective film meets the strictest requirements for the safety of high voltage equipment
For this panel we recommend PWM solar controller EPsolar 20A 12 / 24V with LCD display series VS (04280055).
To connect longer cabling, we recommend purchasing mating pieces for the connectors.
Basic technical parameters:
Operating voltage: 12V
Peak power: 175W
Dimensions: 1485x668x30mm
Weight: 11 kg
Connection: the solar panel is equipped with two cables connected to the terminal block on the back. The cables are approx. 90 cm long and are terminated with MC4 connectors.
BlueSolar 175Wp-12V series 4a polycrystalline solar panel with a peak output of 175Wp, for systems with a working voltage of 12V.
Main characteristics:
- a low voltage-temperature factor increases the efficiency of operation at high temperatures
- exceptional performance in low light and high sensitivity to light in the entire solar spectrum
- 25-year limited warranty on output power and operating parameters (10 years 90% + 25 years 80% output power)
- closed waterproof multifunctional junction box provides a high level of safety
- powerful by-pass diodes limit the power drop during shading
- robust frame made of anodized aluminum facilitates roof mounting of panels in various mounting systems
- Highly transparent tempered glass of the highest quality shows increased rigidity and impact resistance
- pre-wired quick connection system with MC4 type connectors
- advanced encapsulation system made of EVA (ethylene vinyl acetate) with a three-layer protective film meets the strictest requirements for the safety of high voltage equipment
For this panel we recommend PWM solar controller EPsolar 20A 12 / 24V with LCD display series VS (04280055).
To connect longer cabling, we recommend purchasing mating pieces for the connectors.
Basic technical parameters:
Operating voltage: 12V
Peak power: 175W
Dimensions: 1485x668x30mm
Weight: 11 kg
Connection: the solar panel is equipped with two cables connected to the terminal block on the back. The cables are approx. 90 cm long and are terminated with MC4 connectors.
Brand
VICTRON ENERGY
