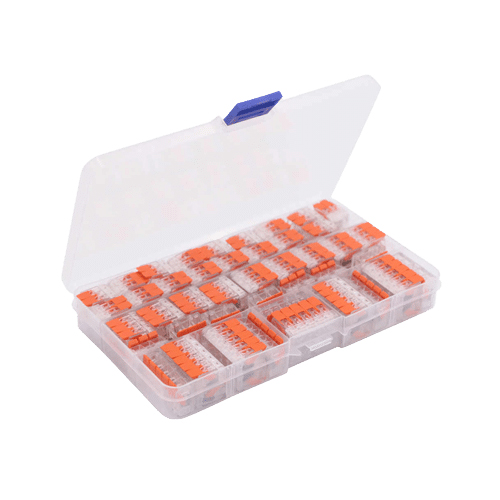

Set of 75 quick connectors NAR0884
TI8780540
Universal installation quick couplings equipped with a clamp.
Using products from this series, you can connect single- and multi-core cables in a wide range of cross-sections.
The strength of this series of connectors is the ability to connect wires of various types and cross-sections. These connectors can be used both in the electrical installation and when connecting the sound system
Technical parameters:
cable type: single-core or multi-core
total number of potentials: 1
rated voltage EN: 250V
rated impulse voltage: 4kV
rated current:
cross-section 32A (single-wire cable) from 0.08 mm to 2.5 mm (from 28 to 14 AWG)
cross-section (wire) from 0.08 mm to 4 mm (from 28 to 12 AWG)
insulation length: approx. 10 mm
contact material: bleached copper
case material: PC UL94 V-2
packaging closed box with compartments with dimensions: 172X98X25 mm
The set includes:
2 ports 35 pieces
3 ports 25 pieces
5 ports 15 pieces
E.A.N
5903933691251
