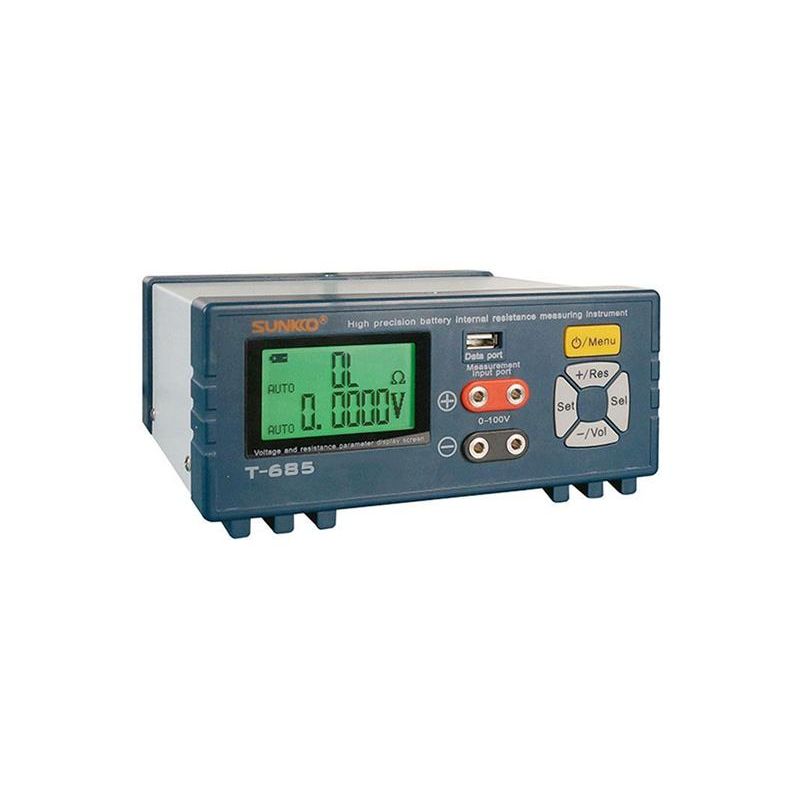

Battery and cell tester SUNKKO T-685
TI7750220
The SUNKKO T-685 cell and battery tester is a high-precision battery internal resistance and voltage analyzer. It is intended for measuring Li-Ion, LiFePO4 and Li-Pol cells
Technical parameters:
- power supply: 100-240 V AC
- measurement parameters: ACR, DCV
- measurement range: R: 2 mohm – 200 ohm V: 0.1mV – ±100VDC
- resolution: 0.0001mohm, 0.1mV
- measurement accuracy: R:±0.5%, V:±0.5%
- frequency of testing: 5x / sec
- automatic range selection
- measurement input: balanced system
Accessories:
- 4-wire measuring terminals
- measuring device for cylindrical cells
- USB cable
- power cable
Notice:
- keep the measuring electrodes and battery poles clean
- dirt or oxide layers adversely affect the measurement results.
https://drive.google.com/…hu9u4Gy/view?…
https://drive.google.com/…4xLAoov/view?…
Brand
HADEX
E.A.N
8596425178995
