Socket Tester UNI-T UT07B-EU
TI7750147
Socket Tester UNI-T UT07B-EU

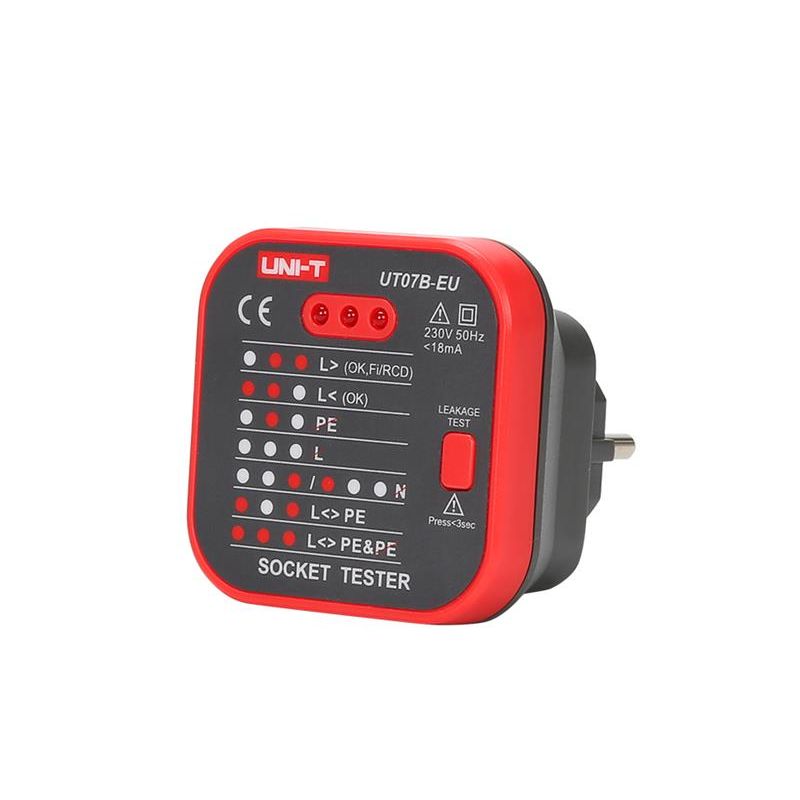

The UNI-T UT07B-EU device is a tester for simple control of 230V / AC socket connections. Using three control LEDs, it signals the correct connection of all three distribution wires and the functionality of the circuit breaker connection.
Product parameters :
Indication of seven socket connection states by means of three LEDs:
- OK, the protector (RCD) test passed.
- OK.
- No ground - yellow-green wire.
- No phase - brown or black wire.
- Zero (reverse) wire is missing - blue wire.
- Phase connected in reverse.
- Phase connected in reverse and ground is missing.
Technical parameters :
- operating voltage: 230V / AC
- operating current: <18mA
- operating frequency: 50Hz to 60Hz
- RCD function test: with a current of approx. 30 mA
- product color: red and gray
- weight: 80.5 g
- dimensions: 65 x 65 x 61 mm
Contents of individual packaging :
- tester UT07B-EU (in blister): 1pc
- instructions for use: 1pc
Wholesale packaging :
- standard quantity per carton: 48 pcs
- dimensions of standard carton: 430 x 330 x 365 mm
- weight of standard carton: 5.4 kg
MANUFACTURER: UNI-TREND
The UNI-T UT07B-EU device is a tester for simple control of 230V / AC socket connections. Using three control LEDs, it signals the correct connection of all three distribution wires and the functionality of the circuit breaker connection.
Product parameters :
Indication of seven socket connection states by means of three LEDs:
- OK, the protector (RCD) test passed.
- OK.
- No ground - yellow-green wire.
- No phase - brown or black wire.
- Zero (reverse) wire is missing - blue wire.
- Phase connected in reverse.
- Phase connected in reverse and ground is missing.
Technical parameters :
- operating voltage: 230V / AC
- operating current: <18mA
- operating frequency: 50Hz to 60Hz
- RCD function test: with a current of approx. 30 mA
- product color: red and gray
- weight: 80.5 g
- dimensions: 65 x 65 x 61 mm
Contents of individual packaging :
- tester UT07B-EU (in blister): 1pc
- instructions for use: 1pc
Wholesale packaging :
- standard quantity per carton: 48 pcs
- dimensions of standard carton: 430 x 330 x 365 mm
- weight of standard carton: 5.4 kg
MANUFACTURER: UNI-TREND
Brand
UNI-T
E.A.N
6935750507278
