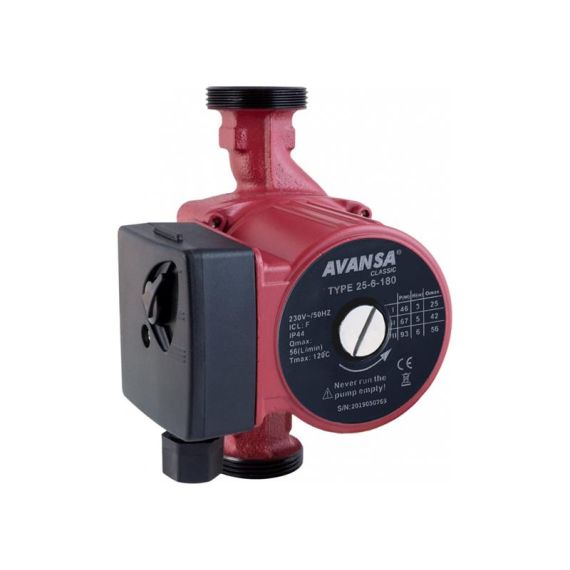

Circulating pump AVANSA 25/6/180
TI6691387
Circulating pump AVANSA 25/6/180
The circulation pump Avansa 25/60 180mm is designed for central heating systems. The pump housing is made of cast iron, cast aluminum. The high quality bipolar motor, asynchronous, does not require overload protection, has three speeds, which is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the characteristics of the device.
Use:
heating of all systems
industrial circulation equipment
cold water and air conditioning systems
Detailed description:
Maximum working pressure: 10 bar
Distance between suction and discharge port: 180 mm
Pumped medium temperature: -10 to +110 ° C
Protection class: IP44
Insulation class: FH
Power input engine: 93/67/46 W
Displacement (m): 6
Dimensions hxwxd (cm): 13,5 x 19,5 x 14,5
Weight (kg): 2.8
Suction DN (mm): 25
DN displacement (mm): 25
Maximum flow (l / min): 55
Material, pump parts: cast iron / plastic
Execution (V): 230
Connection dimensions: 6/4 "
The circulation pump Avansa 25/60 180mm is designed for central heating systems. The pump housing is made of cast iron, cast aluminum. The high quality bipolar motor, asynchronous, does not require overload protection, has three speeds, which is controlled by a special switch mounted on the terminal block, which allows the pump to be adjusted to the characteristics of the device.
Use:
heating of all systems
industrial circulation equipment
cold water and air conditioning systems
Detailed description:
Maximum working pressure: 10 bar
Distance between suction and discharge port: 180 mm
Pumped medium temperature: -10 to +110 ° C
Protection class: IP44
Insulation class: FH
Power input engine: 93/67/46 W
Displacement (m): 6
Dimensions hxwxd (cm): 13,5 x 19,5 x 14,5
Weight (kg): 2.8
Suction DN (mm): 25
DN displacement (mm): 25
Maximum flow (l / min): 55
Material, pump parts: cast iron / plastic
Execution (V): 230
Connection dimensions: 6/4 "
