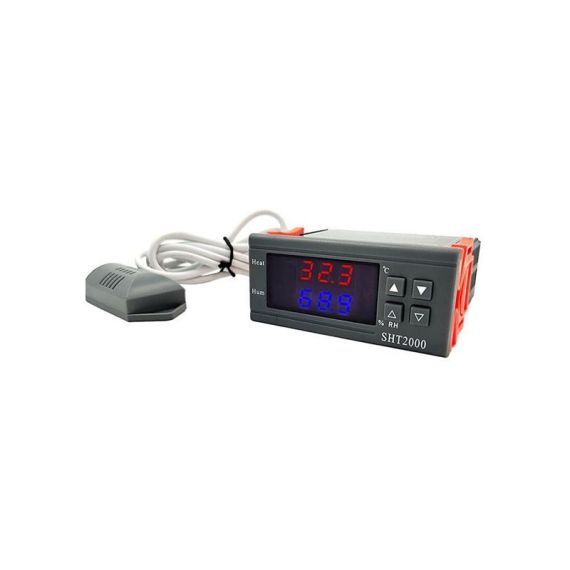

Digital thermostat and hygrostat SHT2000, 230VAC power supply
TI8840395
Digital thermostat and hygrostat SHT2000, power supply 110-230VAC. The SHT-2000 is a thermostat with a hygrostat that can regulate humidity and temperature simultaneously on a split display. The device has two separate switching relays – thermostat output + hydrostat output. The combined thermostat with hygrostat can heat / cool, humidify or dehumidify. It can be used wherever temperature and humidity must be regulated.
Technical parameters:
- model: SHT2000
- supply voltage: 110 ~ 230 V AC / 50 – 60Hz
- temperature range: –20 ~ +100 °C
- humidity range: 5% ~ 100% RH
- accuracy of temperature measurement: 0.3 °C
- humidity measurement accuracy: 3%
- output control: Relay output
- output power: MAX 10 A
Instructions for use:
1) Connect the supply voltage. The upper display shows the temperature, while the lower one shows the relative humidity
2) To reset the active temperature range, use the upper arrow buttons below the °C symbol. By long pressing ^, you can enter the setting of the starting temperature, when the relay closes. The data on the display will start to flash and the up and down arrows can be used to set the thermostat's switching temperature.
The product is not an independently functional unit, it requires professional assembly.
