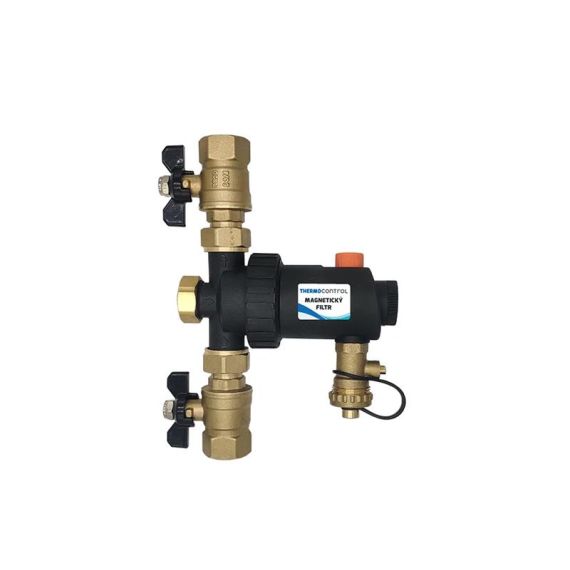

Magnetic filter TC MF03 MINI for installation in central heating, 3/4" SALUS
TI6691376
It is a high efficiency full flow magnetic filter designed for easy installation, cleaning and servicing. It is designed to protect all central heating systems by removing virtually 100% of suspended iron oxide.
The magnetic filter rids the heating system of the following contaminants (e.g. scale, sand, rust, metal debris, etc.), increasing the functionality of the heating system. This device increases the prevention of wear and poor functioning of the heating system.
Horizontal and vertical installation possible.
Technical information
Connection fitting 3/4"
Max. magnetic induction 10 000 Gauss
Filter volume 120 ml
Maximum temperature 100 °C
Maximum pressure 10 bar
Maximum flow rate 1kpa (l/m) 15 l
Maximum absorption capacity 300 μm
Magnet diameter 14,5 mm
Weight 924 g
Dimensions (without valves - W x H x D) 146 x 120 x 62 mm
Brand
SALUS
E.A.N
8594162092864
