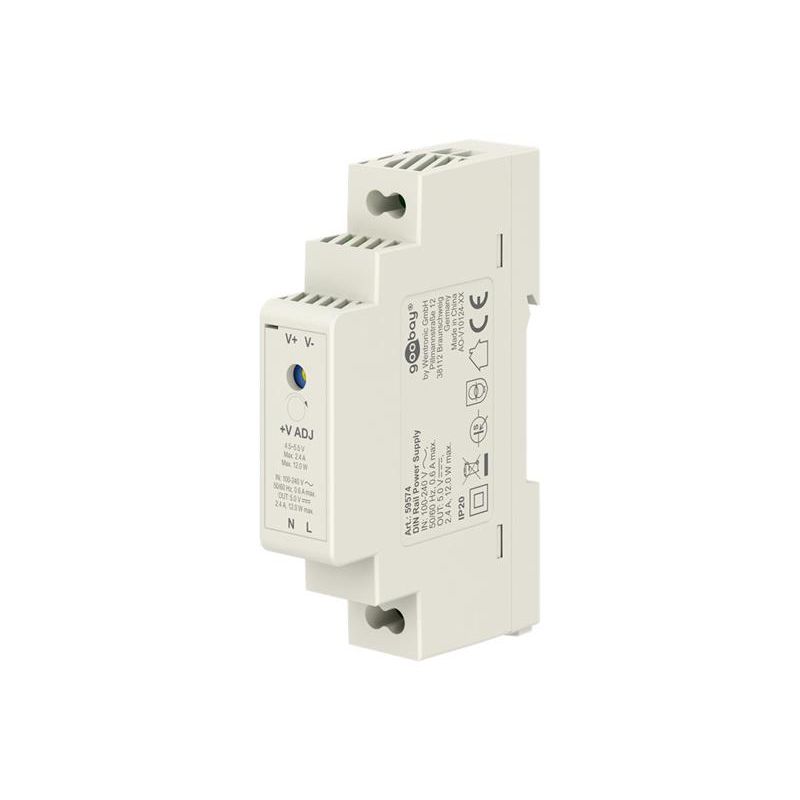

DIN rail power source 5V GOOBAY 59574
TI6440316
DIN rail power supply 5 V, 2.4 A, 12 W
- Suitable for mounting on DIN TS (or TH) 35/7.5 or TS (or TH) 35/15
- The 5 V LED power supply is suitable as a bell transformer, for controlling surveillance and access systems, door openers, intercoms, bell systems, etc.
- With a width of 18 mm, the LED driver is extremely compact and can be quickly and easily mounted on a DIN rail with a cylindrical profile using the system's clicks.
- Highly reliable and stable 5 V LED transformer with an input voltage range of 100-240 V (AC) at 50/60 Hz
- High efficiency rectifier has a variable DC output voltage of 4.5-5.5V and low no-load power.
- Extremely safe thanks to overvoltage, overload and short-circuit protection, protection class IP20 and safe electronic isolation according to appliance class II
- The 240 V AC to 5 V DC transformer with passive convection cooling is connected using touch-proof screw terminals.
- The LED indicator on the DIN rail transformer (DR-12-5) lights up continuously during operation.
Technical parameters:
- max. power: 12 W
- Input, voltage range: 100-240 (AC) V
- Input Type: Screw Terminal x in
- Power, max. current: 2.4 A
- Output, type: Screw terminal
- Output voltage (DC): 5 V (DC)
- Number of inputs: 2 pcs.
- Number of outputs: 2 ports
- Output, voltage range: 4.5-5.5V ADJ V
- Output voltage (DC): 5.0 V (DC)
- Power, max. current: 2.4 A
- Input current: 0.6A
- Protection class: IP20
- Width: 18 mm
- Height: 92.5 mm
- Depth: 59 mm
- Weight: 71.5 g
Brand
Goobay
E.A.N
4040849595745
