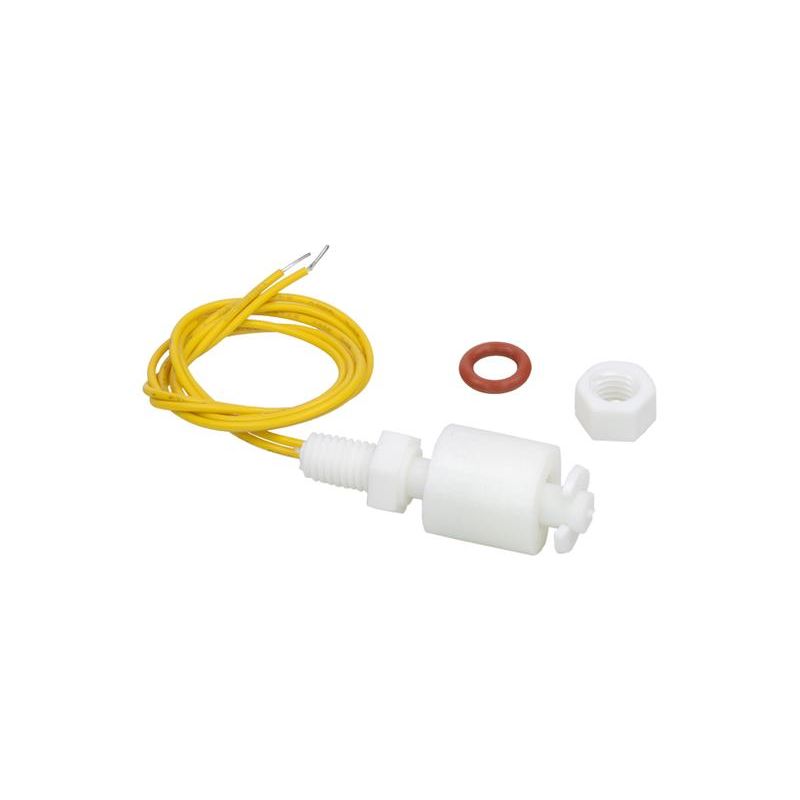

Level switch STU 35961 0-110V
TI6441001
The level switch is used, for example, to turn off the pump after filling the tank, or to turn it on when the liquid level drops below the required level.
Designed for water, oils, diesel, gasoline, etc.
Technical parameters:
placement in the M8 hole
length: 35 mm
max. switching voltage: 110 V
max. contact load: 10 W
max. switching current: 0.5 A
max. breakdown voltage: 220 V
max. contact resistance: 100 mΩ
working temperature: -10 - +85 ºC
float material: PP
body material: PP + GF
Brand
STU
