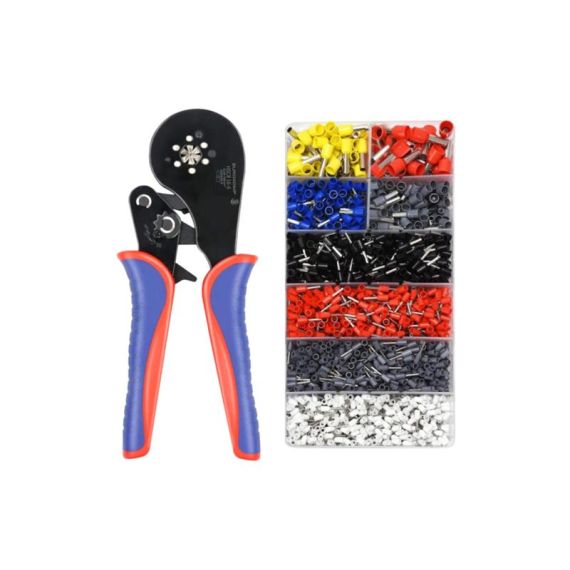

Crimping set EUROKOMP E6213 1800 pcs
TI6610264
Set of insulated cable ends + crimping tool up to 16 mm
Crimping tool for crimping insulated and non-insulated single and double ends.
HEXagonal clamping system, thanks to which you do not need a lot of force to clamp
Highest processing quality
The certainty of a good clamping thanks to the locking system, which allows the pliers to be opened only after the tip is clamped.
High comfort of use thanks to the practical shape and low weight
A handy, very durable tool.
Rubberized handles improve working comfort
Working scope:
For single sleeves: 0.08-16 mm2
Specifications:
Spikes: insulated and non-insulated, single and double,
Weight: 0.36 kg,
Length: 20.5 cm,
hardened head,
Handy press machine,
Crimping. One hand,
Ratchet system supporting crimping,
Highest processing quality and long tool life,
Compliance with EN 50109-1.
Our top model with clamping assistant.
In the offered model, the crimping process is additionally supported by a ratchet clamping support system. A special mechanism allows for comfortable clamping with one hand.
Hexagonal crimping system
In the offered model, the ferrule is crimped on six sides, thanks to which it is very firmly attached to the cable. Another advantage of this solution is the shape of the crimped sleeve, which is similar to a circle, which makes it much easier to insert the crimped cable into the socket.
Cable eyelets for cables:
Quantity: 1800 pcs
Material: PVC + copper
Packaging: PVC box with compartments
Color: red, white, yellow, black, gray, blue
Size:
500 pieces E0508-White: (for cable 0.5mm2, protruding element length 8mm)
400 pieces E7508-grey: (for cable 0.75mm2, length of protruding element 8mm)
350 pieces E1008-Red: (for cable 1.0mm2, protruding element length 8mm)
100 pieces E2508-blue: (for cable 2.mm2, length of protruding element 8mm)
70 pieces E4009-grey: (for cable 4.0mm2, protruding element length 9mm)
50 pieces E6012-yellow: (for cable 6mm2, length of protruding element 12mm)
30 pieces E1012-red: (for cable 10mm2, length of protruding element 12mm)
Brand
EUROKOMP
E.A.N
5903933692548
