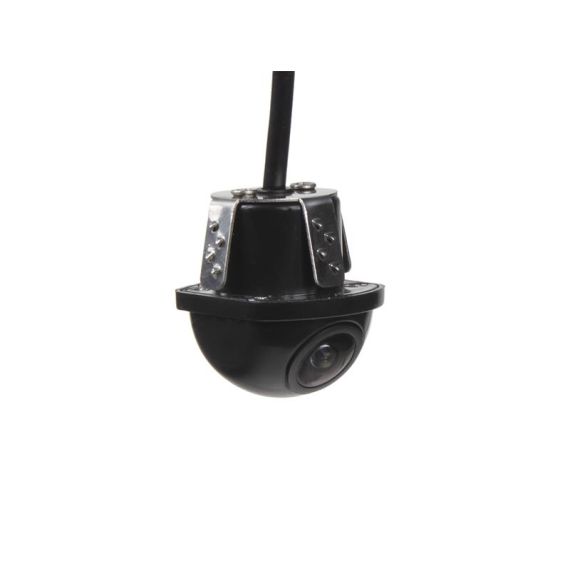

Parking camera CCD 08
TI6438756
CCD PAL/NTSC color camera designed for free mounting or for installation, preferably above the rear license plate of the vehicle or in another place.
Technical parameters:
- PAL/NTSC TV system after cutting the blue loop
- scanning angle: 135°
- displays auxiliary trajectories (optional) after cutting the white loop disappears.
- min. lighting 0.1 LUX
- resolution: 420 TV lines
- waterproof protection IP 68
- 12 V / 200 mA power supply
- working temperature from - 20 °C to + 75 °C
- cable length: 5 m
- automatic white balance, AGC and BLC
- connection connectors: video output - CINCH female, power supply - loose wires
- dimensions: 27 x 22 x 14 mm (dimensions including recessed part 27 x 22 x 28 mm)
- into a hole with a diameter of 20 mm
Brand
STU
E.A.N
8595128230061
