Ramp COMPASS 09248
TI6691488

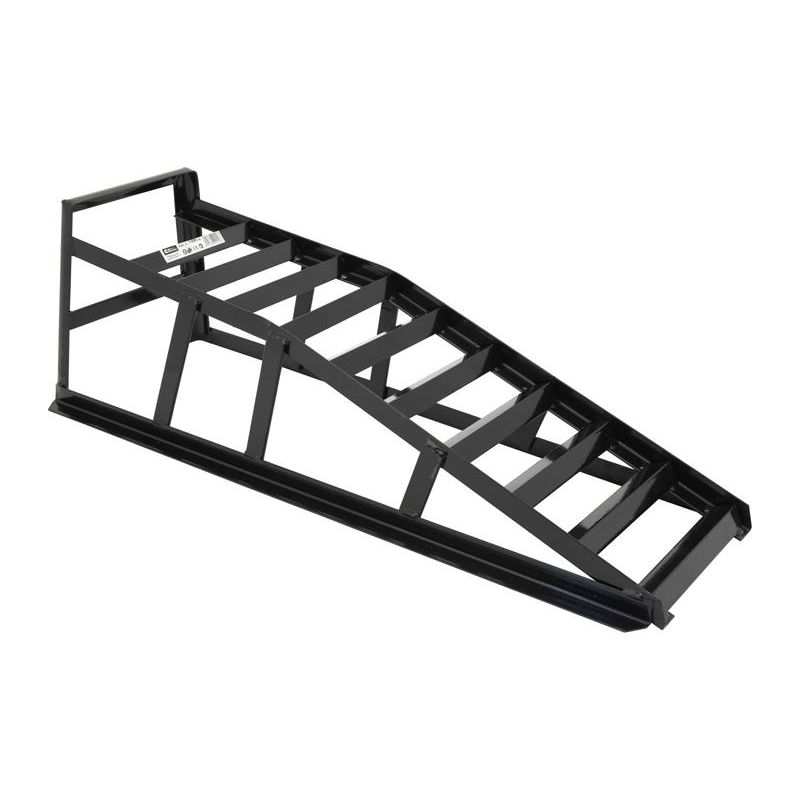

Ramp COMPASS 09248
The ramp for the vehicle is suitable for car maintenance and repair.
The device provides the necessary height for work under the car, or the possibility of checking the lower part of the car and partially replaces the workshop "pit".
The dimensions of the driveway are 83 x 31 x 27 mm. The maximum load of up to 1000 kg is ensured by stable steel constructions, including densely spaced struts and wedges.
The access ramp must be used in pairs.
Technical parameters:
- External dimensions: 83 x 27 x 31 cm
- Load capacity: 1000 kg (2000 kg steam load capacity)
- Material: Steel
- Runway height: 200 mm
- Max. runway height (according to homologation): 175 mm
- Approach angle: 20 °
- Runway width: 210 mm
- Max. tire width (according to homologation): 185mm
The ramp for the vehicle is suitable for car maintenance and repair.
The device provides the necessary height for work under the car, or the possibility of checking the lower part of the car and partially replaces the workshop "pit".
The dimensions of the driveway are 83 x 31 x 27 mm. The maximum load of up to 1000 kg is ensured by stable steel constructions, including densely spaced struts and wedges.
The access ramp must be used in pairs.
Technical parameters:
- External dimensions: 83 x 27 x 31 cm
- Load capacity: 1000 kg (2000 kg steam load capacity)
- Material: Steel
- Runway height: 200 mm
- Max. runway height (according to homologation): 175 mm
- Approach angle: 20 °
- Runway width: 210 mm
- Max. tire width (according to homologation): 185mm
Brand
COMPASS
E.A.N
8591686092486
